Implement
90 - Frame( Рамка)

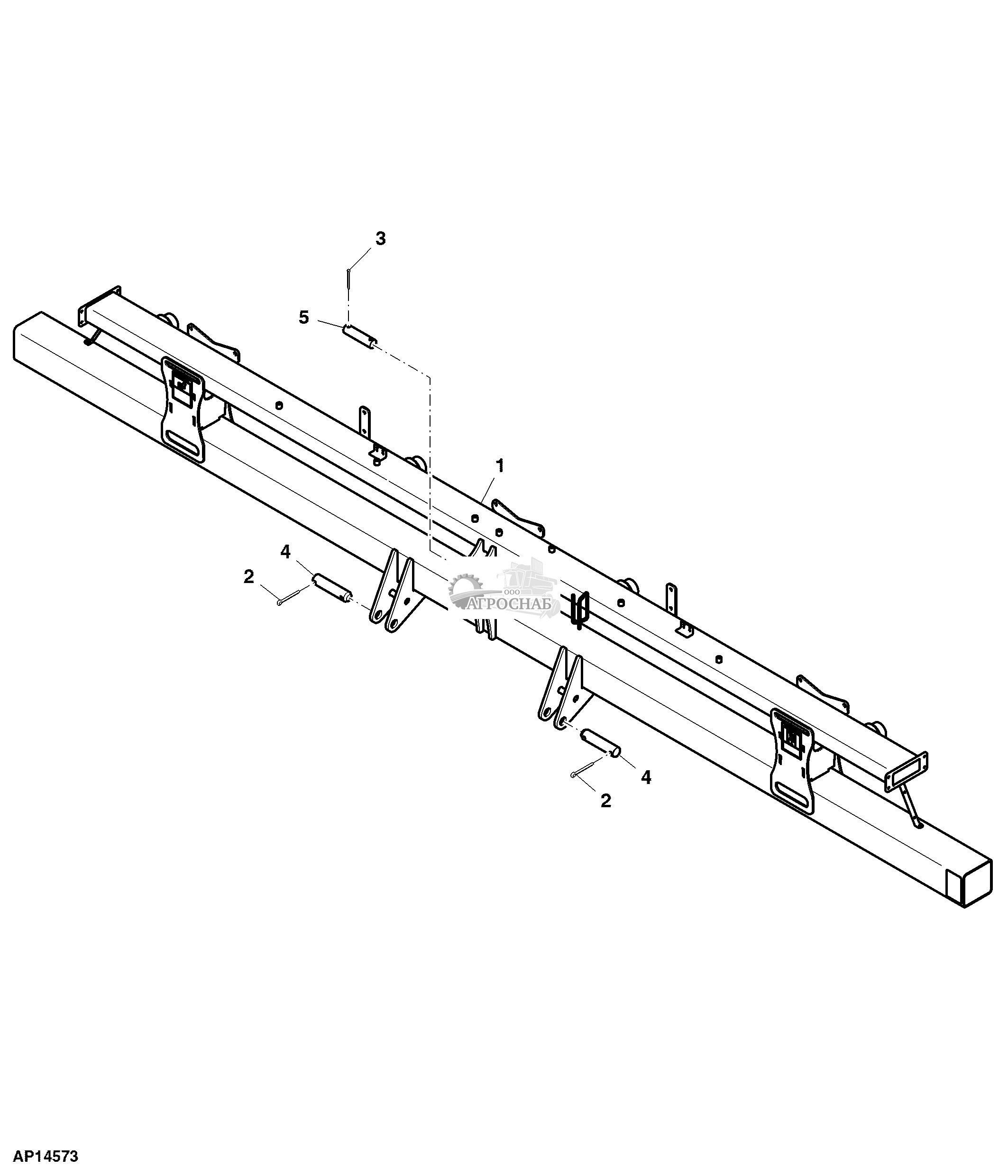

Main Frame (12 R / 36 - 38)(Основная Рама Р )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA78827 | Main Frame | 1 | |||
| 2 | 11H227 | Cotter Pin | 4 | 3/8" X 3" | ||
| 3 | 11M7085 | Cotter Pin | 2 | 6.300 X 63 mm | ||
| 4 | A41517 | Pin Fastener | 2 | |||
| 5 | A87540 | Pin Fastener | 1 |

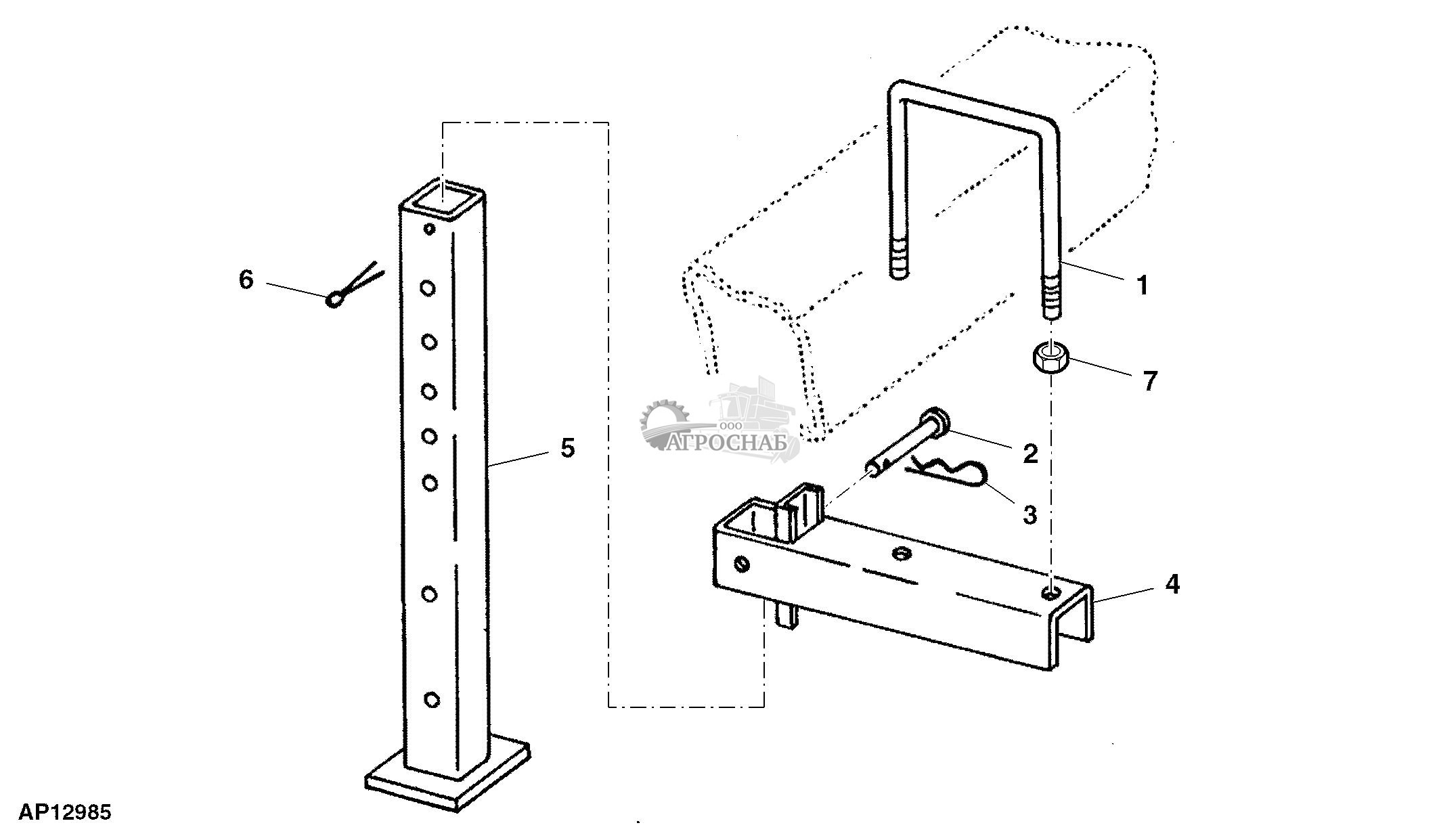

Parking Stands(Парковка Стоит)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A46533 | U-Bolt | 1 | |||
| 2 | D10033 | Pin Fastener | 1 | |||
| 3 | A15147 | Spring Locking Pin | 1 | |||
| 4 | AA23104 | Stand | 1 | |||
| 5 | AA35541 | Stand | 1 | |||
| 6 | 11M7071 | Cotter Pin | 1 | 8 X 40 mm | ||
| 7 | 14M7276 | Nut | 2 | M16 |

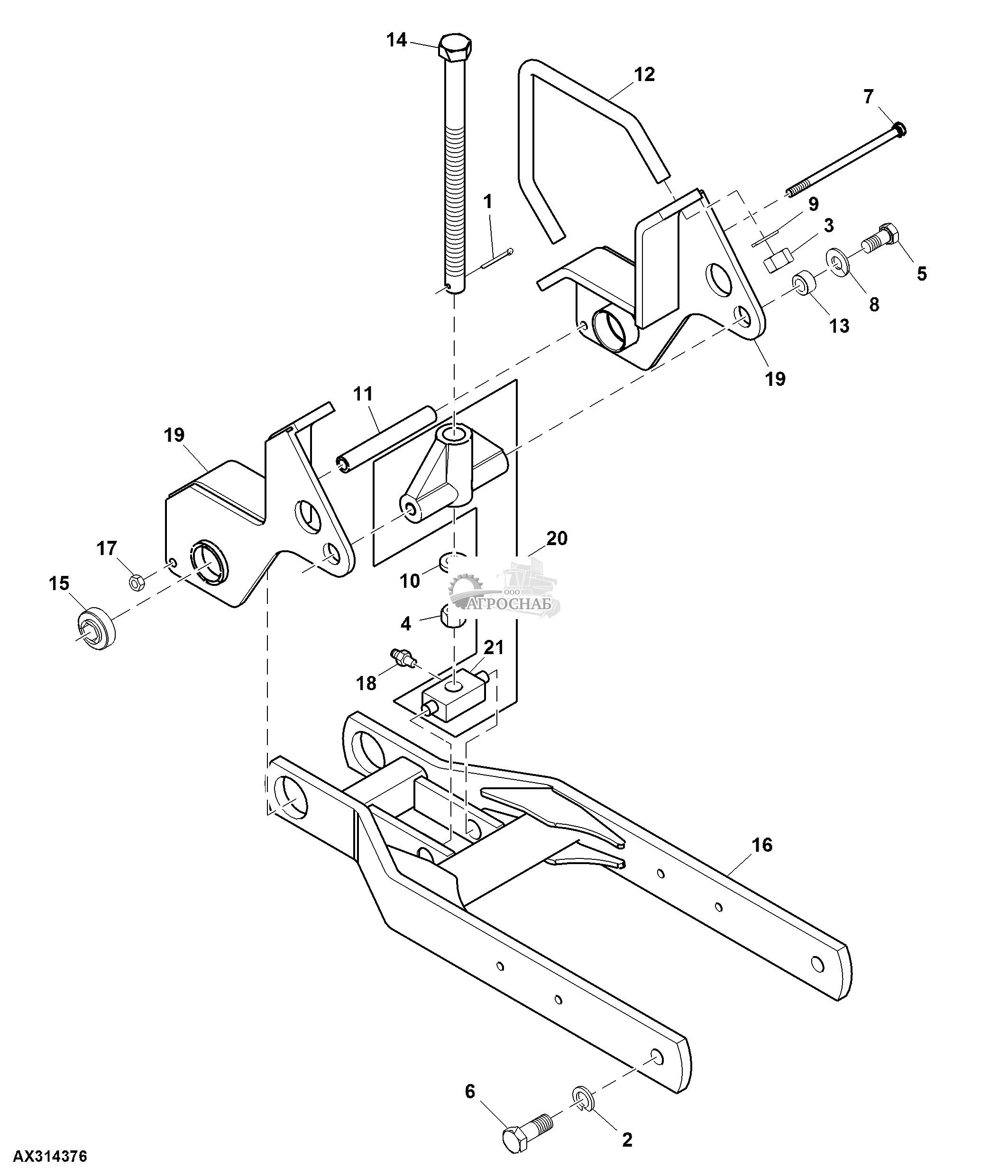

Wheel Frame, Standard(Стандартная Рамка Колеса )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 11M7030 | Cotter Pin | 1 | 5 X 40 mm | ||
| 2 | 12M7070 | Lock Washer | 2 | 20 mm | ||
| 3 | 14M7277 | Nut | 4 | M20 | ||
| 4 | 14M7278 | Nut | 1 | M24 | ||
| 5 | 19M7283 | Cap Screw | 2 | M16 X 35 | ||
| 6 | 19M7487 | Cap Screw | 2 | M20 X 50 | ||
| 7 | 19M8236 | Cap Screw | 1 | M10 X 190 | ||
| 8 | 24H1378 | Washer | 2 | 11/16" X 1-15/32" X 0.134" | ||
| 9 | 24M7051 | Washer | 4 | 21 X 37 X 3 mm | ||
| 10 | 24M7243 | Washer | 1 | 25.400 X 50 X 6 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A102734 | Bushing | 1 | |||
| 12 | A48190 | U-Bolt | 2 | |||
| 13 | A112543 | Bushing | 4 | |||
| 14 | A76551 | Cap Screw | 1 | |||
| 15 | AA28271 | Ball Bearing | 1 | |||
| 16 | AH131562 | Arm | 1 | INCLUDES JD7844 | ||
| 17 | A51212 | Lock Nut | 1 | M10 | ||
| 18 | JD7844 | Lubrication Fitting | 1 | USE WITH AH131562 | ||
| 19 | AA37515 | Support | 2 | |||
| 20 | AA43781 | Trunnion | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | A103964 | Trunnion | 1 |

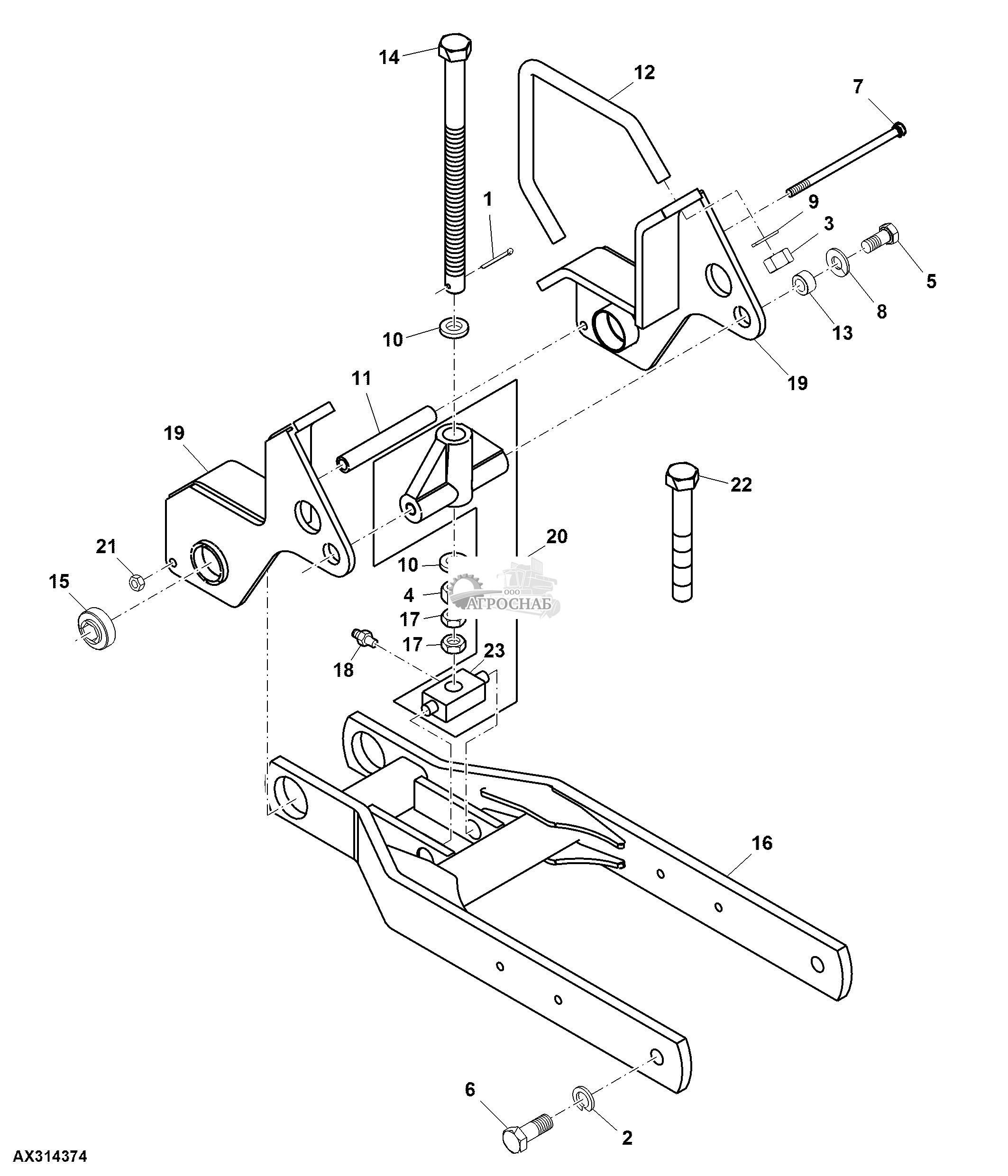

Wheel Frame W/ Float(Колесо Рамки W Поплавок)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 11M7030 | Cotter Pin | 1 | 5 X 40 mm | ||
| 2 | 12M7070 | Lock Washer | 2 | 20 mm | ||
| 3 | 14M7277 | Nut | 4 | M20 | ||
| 4 | 14M7278 | Nut | 1 | M24 | ||
| 5 | 19M7283 | Cap Screw | 2 | M16 X 35 | ||
| 6 | 19M7487 | Cap Screw | 2 | M20 X 50 | ||
| 7 | 19M8236 | Cap Screw | 1 | M10 X 190 | ||
| 8 | 24H1378 | Washer | 2 | 11/16" X 1-15/32" X 0.134" | ||
| 9 | 24M7051 | Washer | 4 | 21 X 37 X 3 mm | ||
| 10 | 24M7243 | Washer | 2 | 25.400 X 50 X 6 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A102734 | Bushing | 1 | |||
| 12 | A48190 | U-Bolt | 2 | |||
| 13 | A112543 | Bushing | 2 | |||
| 14 | A76551 | Cap Screw | 1 | |||
| 15 | AA28271 | Ball Bearing | 1 | |||
| 16 | AH131562 | Arm | 1 | |||
| 17 | 14M7240 | Nut | 2 | M24 W/ Float Only | ||
| 18 | JD7844 | Lubrication Fitting | 1 | USE WITH AH131562 | ||
| 19 | AA37515 | Support | 2 | |||
| 20 | AA43781 | Trunnion | 1 | Repair Kit | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | A51212 | Lock Nut | 1 | |||
| 22 | 19M7893 | Cap Screw | 1 | M24 X 160 | ||
| 23 | A103964 | Trunnion | 1 |

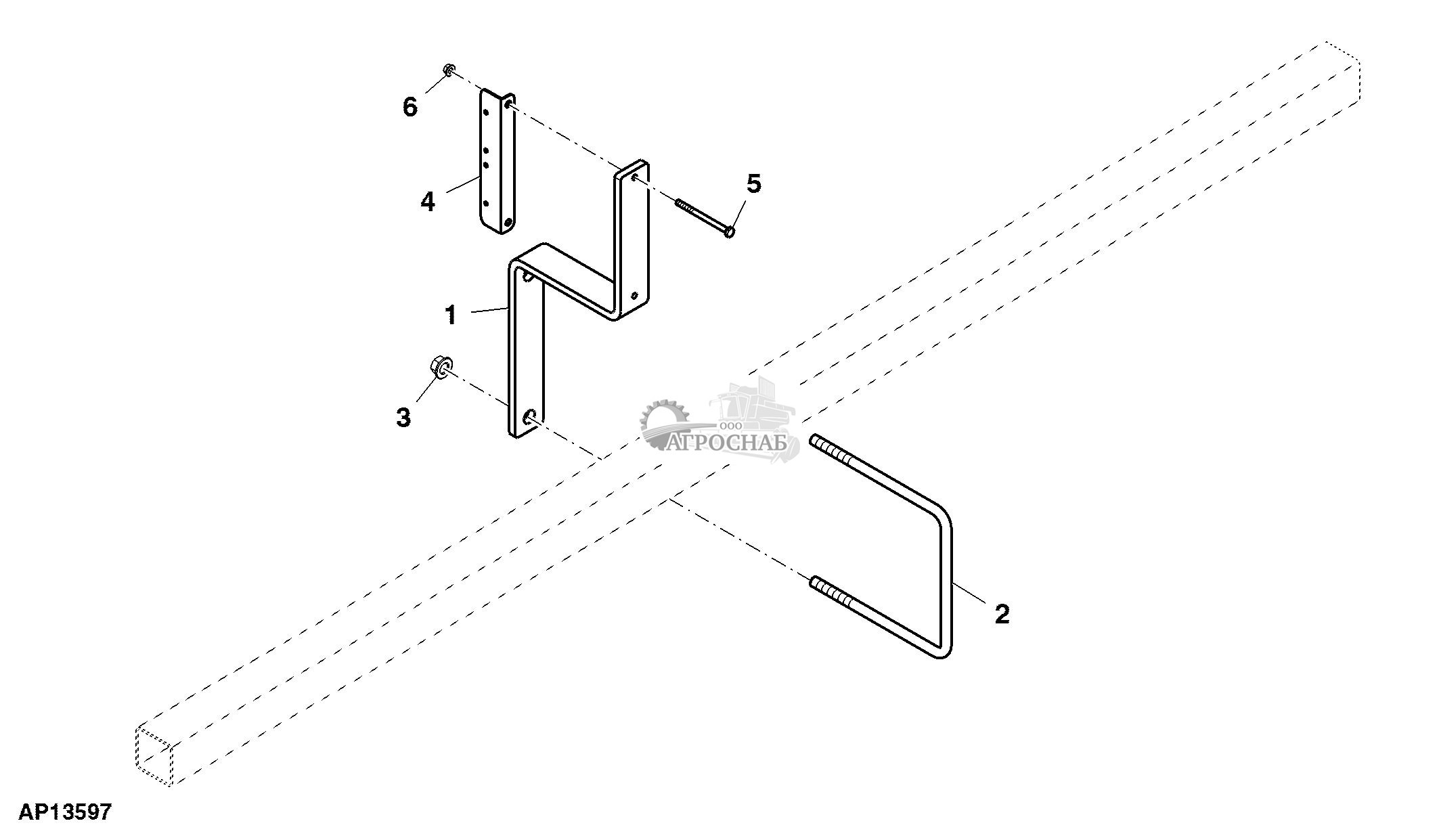

Controller Hardware, Twin Row(Аппаратный Контроллер Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A91164 | Plate | 1 | |||
| 2 | A46534 | U-Bolt | 1 | |||
| 3 | 14M7299 | Flange Nut | 2 | M12 | ||
| 4 | A73107 | Plate | 1 | |||
| 5 | 19M7689 | Cap Screw | 2 | M6 X 80 | ||
| 6 | 14M7303 | Flange Nut | 2 | M6 |

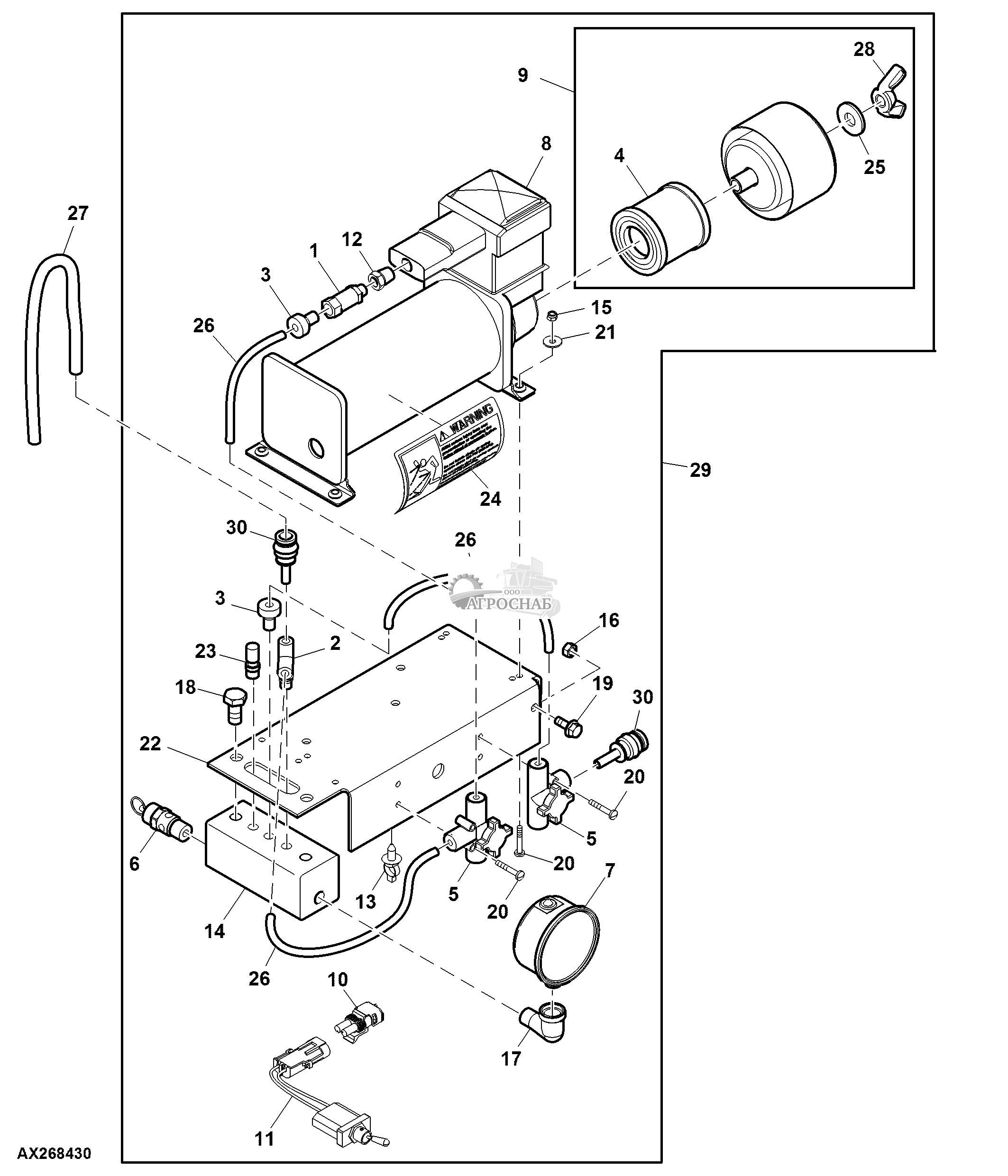

Compressor and Cab Mounting(Компрессор и крепление кабины )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A83932 | Check Valve | 1 | |||
| 2 | A85798 | Tee Fitting | 1 | |||
| 3 | A85799 | Fitting | 2 | |||
| 4 | A89458 | Filter Element | 1 | |||
| 5 | AA41982 | Pneumatic Control Valve | 2 | |||
| 6 | AA49828 | Pressure Relief Valve | 1 | |||
| 7 | AA49830 | Pressure Gauge | 1 | |||
| 8 | AA72119 | Compressor | 1 | Air Assembly | ||
| AA76117 | Grommet Kit | 1 | Includes 4 Brass Bushin gs and 4 Rubber Grommets | |||
| AA79118 | Compressor Kit | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | AA73945 | Filter Housing | 1 | |||
| 10 | AA74742 | Wiring Harness | 1 | |||
| 11 | AH158310 | Toggle/Rocker Switch | 1 | |||
| 12 | L1253N | Adapter Fitting | 1 | |||
| 13 | RE258807 | Tie Band | 3 | |||
| 14 | A69322 | Pneumatic Pressure Valve | 1 | |||
| 15 | 14M7264 | Lock Nut | 8 | M4 | ||
| 16 | 14M7272 | Nut | 1 | M6 | ||
| 17 | 15H613 | Elbow Fitting | 1 | 1/4" | ||
| 18 | 19M7166 | Cap Screw | 2 | M10 X 20 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 19 | 19M7775 | Screw | 1 | M6 X 16 | ||
| 20 | 21M7369 | Screw | 8 | M4 X 25 | ||
| 21 | 24M7138 | Washer | 4 | 5.300 X 15 X 1 mm | ||
| 22 | A90292 | Bracket | 1 | |||
| 23 | A57900 | Pressure Relief Valve | 1 | |||
| 24 | A90364 | Label | 1 | Warning | ||
| 25 | T167683 | Washer | 1 | |||
| 26 | ...... | Hose | 3 | 1/4", CTL AR, MF A58818 | ||
| 27 | ...... | Hose | AR | 3/8", CTL AR, MF A89903 | ||
| 28 | M47887 | Nut | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 29 | AA73949 | Compressor | 1 | |||
| 30 | A90281 | Adapter Fitting | 2 |

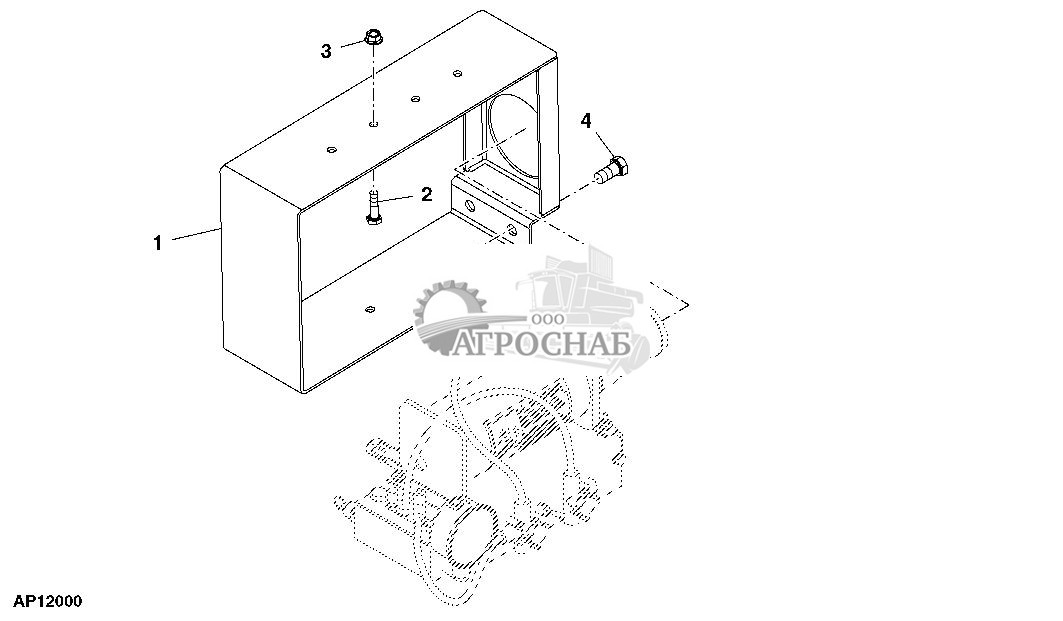

Bracket, Compressor Cab Mount(Кронштейн Компрессора Кабины Крепление)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA75180 | Bracket | 1 | Compressor Cab Mount | ||
| 2 | 19M7288 | Cap Screw | 1 | M8 X 30 | ||
| 3 | 14M7298 | Flange Nut | 1 | M8 | ||
| 4 | 19M7268 | Cap Screw | 2 | M12 X 25 | ||
| 5 | 14M7275 | Nut | 2 | M12 |
